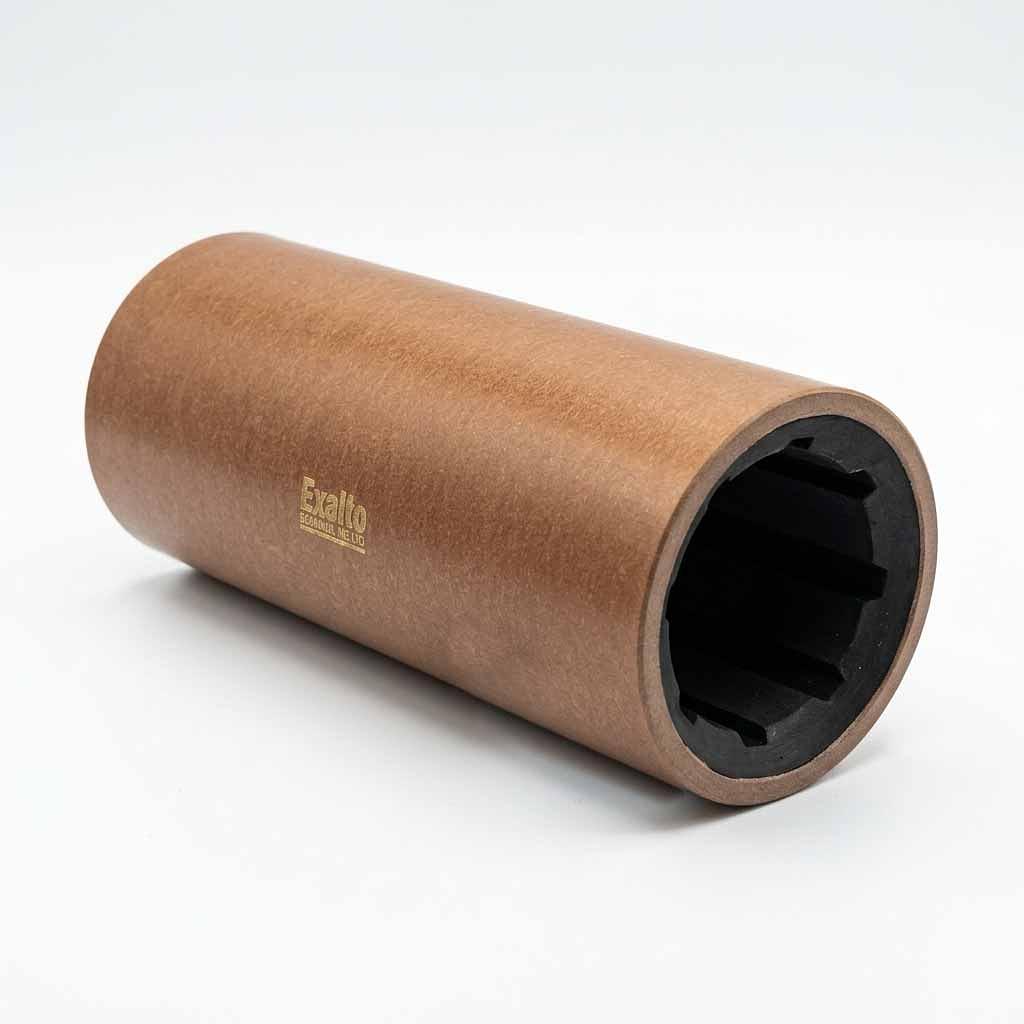

Phenolic Cutlass Bearing - 30 mm x 1-3/4" x 120 mm - MIPSF30
Genuine Exalto water-lubricated phenolic cutlass bearing for marine propeller shafts. Size: 30mm x 1 3/4" x 120mm. Metric/Imperial sizing.
Specifications
- Product code (SKU)
MIPSF30- Brand
- Exalto
- Manufactured in
- United Kingdom
- Material
- Phenolic
- Unit system
- Metric/Imperial
- Nominal size
- 30mm x 1 3/4" x 120mm
- Inside diameter (I/D)
- 30 mm
- Outside diameter (O/D)
- 1-3/4"
- Length
- 120 mm
- I/D tolerance
- 30.24 – 30.34 mm
- O/D tolerance
- 1.7510 – 1.7516"
About this bearing
The MIPSF30 is a genuine Exalto phenolic cutlass bearing from the Standard Marine Range, manufactured in the United Kingdom to OEM tolerances. Nominal size is 30mm x 1 3/4" x 120mm. It is designated for a 30 mm shaft and a nominal 1-3/4" housing bore. Confirm the specified housing fit and application before fitting. The tolerance ranges above describe the finished bearing dimensions. Overall length is 120 mm.
A phenolic outer shell with a grooved nitrile rubber lining. The non-metallic shell avoids galvanic corrosion between the bearing shell and a metal housing. Exalto allows for phenolic water absorption in its manufacturing tolerances.
Refer to Exalto's shell and lining guidance and installation instructions. A bearing with matching nominal dimensions still needs a compatible material, clearance and mounting arrangement.
This bearing is out of stock and available to pre-order. The dispatch estimate is shown above. Shipping within Australia is free.
Need help sizing? See the measuring guide for step-by-step instructions, or contact us and we'll reply within one business day.
