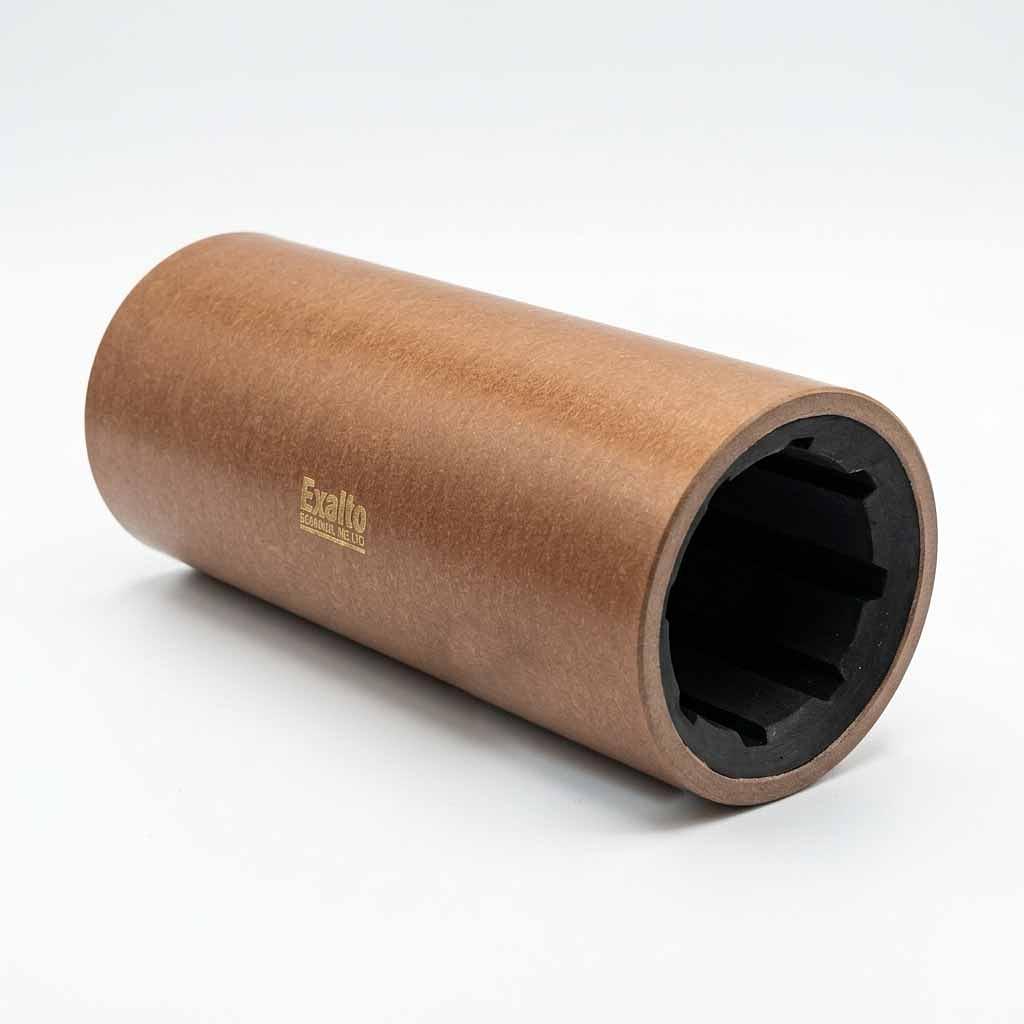

Phenolic Cutlass Bearing - 100 mm x 125 mm x 400 mm - MPSF100
Genuine Exalto water-lubricated phenolic cutlass bearing for marine propeller shafts. Size: 100 x 125 x 400mm. Metric sizing.
Specifications
- Product code (SKU)
MPSF100- Brand
- Exalto
- Manufactured in
- United Kingdom
- Material
- Phenolic
- Unit system
- Metric
- Nominal size
- 100 x 125 x 400mm
- Inside diameter (I/D)
- 100 mm
- Outside diameter (O/D)
- 125 mm
- Length
- 400 mm
- I/D tolerance
- 100.44 – 100.54 mm
- O/D tolerance
- 125.043 – 125.068 mm
About this bearing
The MPSF100 is a genuine Exalto phenolic cutlass bearing from the Standard Marine Range, manufactured in the United Kingdom to OEM tolerances. Nominal size is 100 x 125 x 400mm. It is designated for a 100 mm shaft and a nominal 125 mm housing bore. Confirm the specified housing fit and application before fitting. The tolerance ranges above describe the finished bearing dimensions. Overall length is 400 mm.
A phenolic outer shell with a grooved nitrile rubber lining. The non-metallic shell avoids galvanic corrosion between the bearing shell and a metal housing. Exalto allows for phenolic water absorption in its manufacturing tolerances.
Refer to Exalto's shell and lining guidance and installation instructions. A bearing with matching nominal dimensions still needs a compatible material, clearance and mounting arrangement.
This bearing is in Australian stock. Check the availability shown above before ordering. Shipping within Australia is free.
Need help sizing? See the measuring guide for step-by-step instructions, or contact us and we'll reply within one business day.
