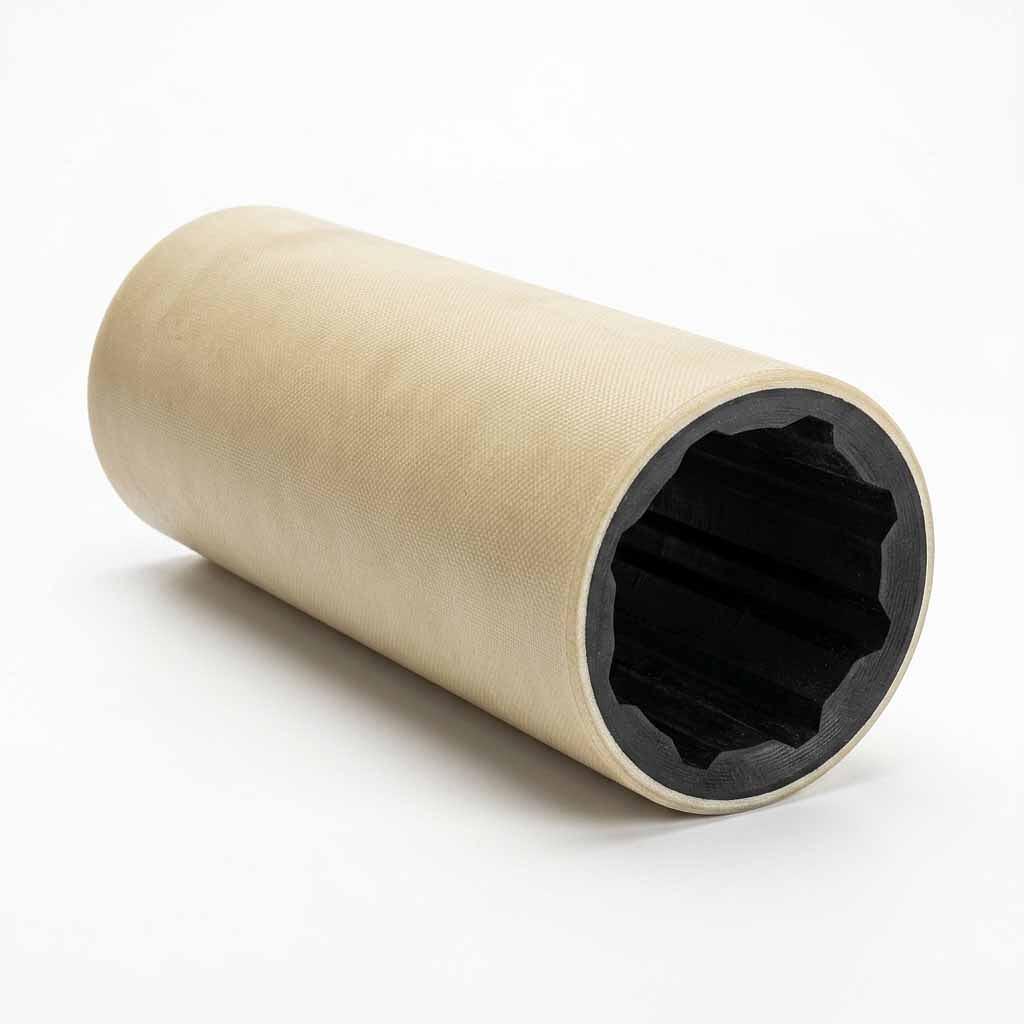

GRP Cutlass Bearing - 100 mm x 125 mm x 400 mm - MGSF100
Genuine Exalto water-lubricated grp cutlass bearing for marine propeller shafts. Size: 100 x 125 x 400mm. Metric sizing.
Specifications
- Product code (SKU)
MGSF100- Brand
- Exalto
- Manufactured in
- United Kingdom
- Material
- GRP
- Unit system
- Metric
- Nominal size
- 100 x 125 x 400mm
- Inside diameter (I/D)
- 100 mm
- Outside diameter (O/D)
- 125 mm
- Length
- 400 mm
- I/D tolerance
- 100.10 – 100.20 mm
- O/D tolerance
- 125.043 – 125.068 mm
About this bearing
The MGSF100 is a genuine Exalto grp cutlass bearing from the Standard Marine Range, manufactured in the United Kingdom to OEM tolerances. Nominal size is 100 x 125 x 400mm. It is designated for a 100 mm shaft and a nominal 125 mm housing bore. Confirm the specified housing fit and application before fitting. The tolerance ranges above describe the finished bearing dimensions. Overall length is 400 mm.
A glass-reinforced composite outer shell with a grooved nitrile rubber lining. Exalto identifies GRP as suitable for steel and aluminium stern tubes as well as compatible non-metallic housings. Follow the specified fit and retention method.
Refer to Exalto's shell and lining guidance and installation instructions. A bearing with matching nominal dimensions still needs a compatible material, clearance and mounting arrangement.
This bearing is out of stock and available to pre-order. The dispatch estimate is shown above. Shipping within Australia is free.
Need help sizing? See the measuring guide for step-by-step instructions, or contact us and we'll reply within one business day.
