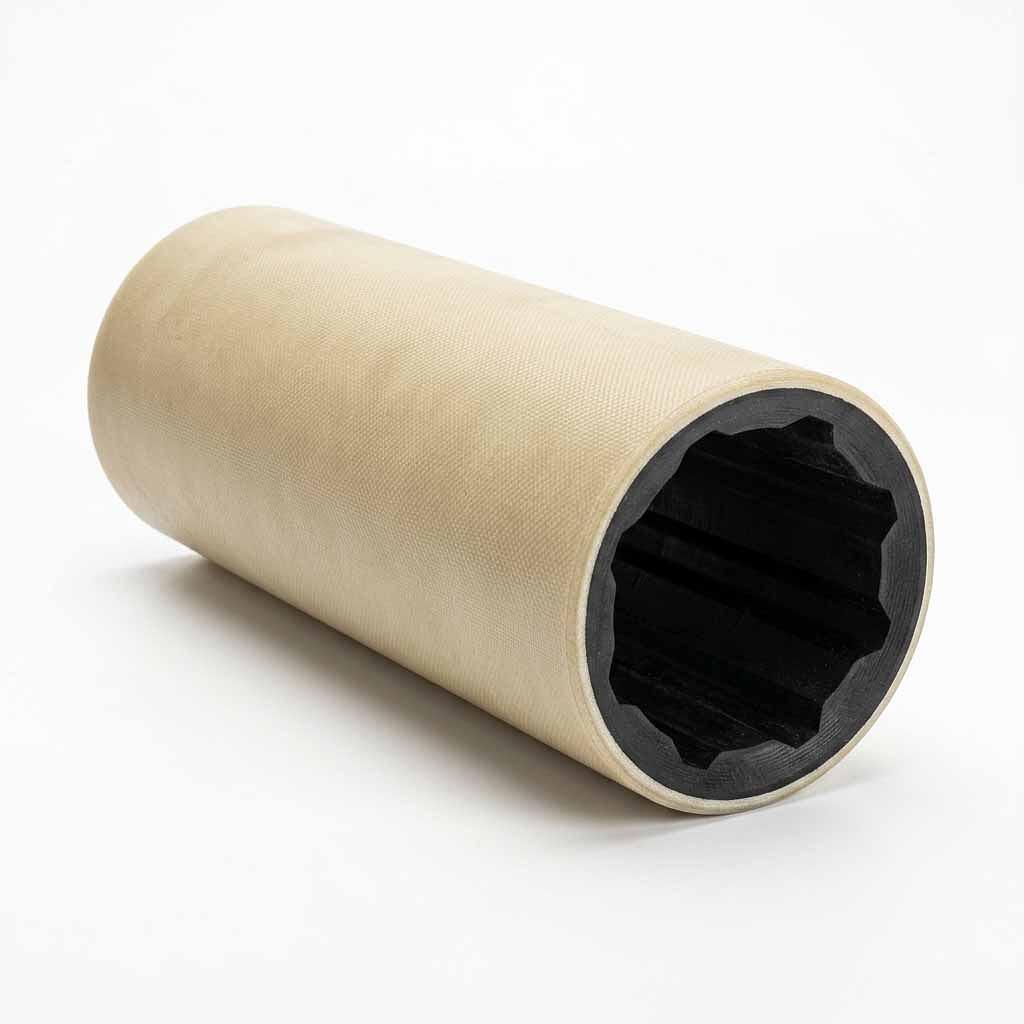

GRP Cutlass Bearing - 25 mm x 40 mm x 100 mm - MGSF25
Genuine Exalto water-lubricated grp cutlass bearing for marine propeller shafts. Size: 25 x 40 x 100mm. Metric sizing.
Specifications
- Product code (SKU)
MGSF25- Brand
- Exalto
- Manufactured in
- United Kingdom
- Material
- GRP
- Unit system
- Metric
- Nominal size
- 25 x 40 x 100mm
- Inside diameter (I/D)
- 25 mm
- Outside diameter (O/D)
- 40 mm
- Length
- 100 mm
- I/D tolerance
- 25.08 – 25.18 mm
- O/D tolerance
- 40.026 – 40.042 mm
About this bearing
The MGSF25 is a genuine Exalto grp cutlass bearing from the Standard Marine Range, manufactured in the United Kingdom to OEM tolerances. Nominal size is 25 x 40 x 100mm. It is designated for a 25 mm shaft and a nominal 40 mm housing bore. Confirm the specified housing fit and application before fitting. The tolerance ranges above describe the finished bearing dimensions. Overall length is 100 mm.
A glass-reinforced composite outer shell with a grooved nitrile rubber lining. Exalto identifies GRP as suitable for steel and aluminium stern tubes as well as compatible non-metallic housings. Follow the specified fit and retention method.
Refer to Exalto's shell and lining guidance and installation instructions. A bearing with matching nominal dimensions still needs a compatible material, clearance and mounting arrangement.
This bearing is in Australian stock. Check the availability shown above before ordering. Shipping within Australia is free.
Need help sizing? See the measuring guide for step-by-step instructions, or contact us and we'll reply within one business day.
