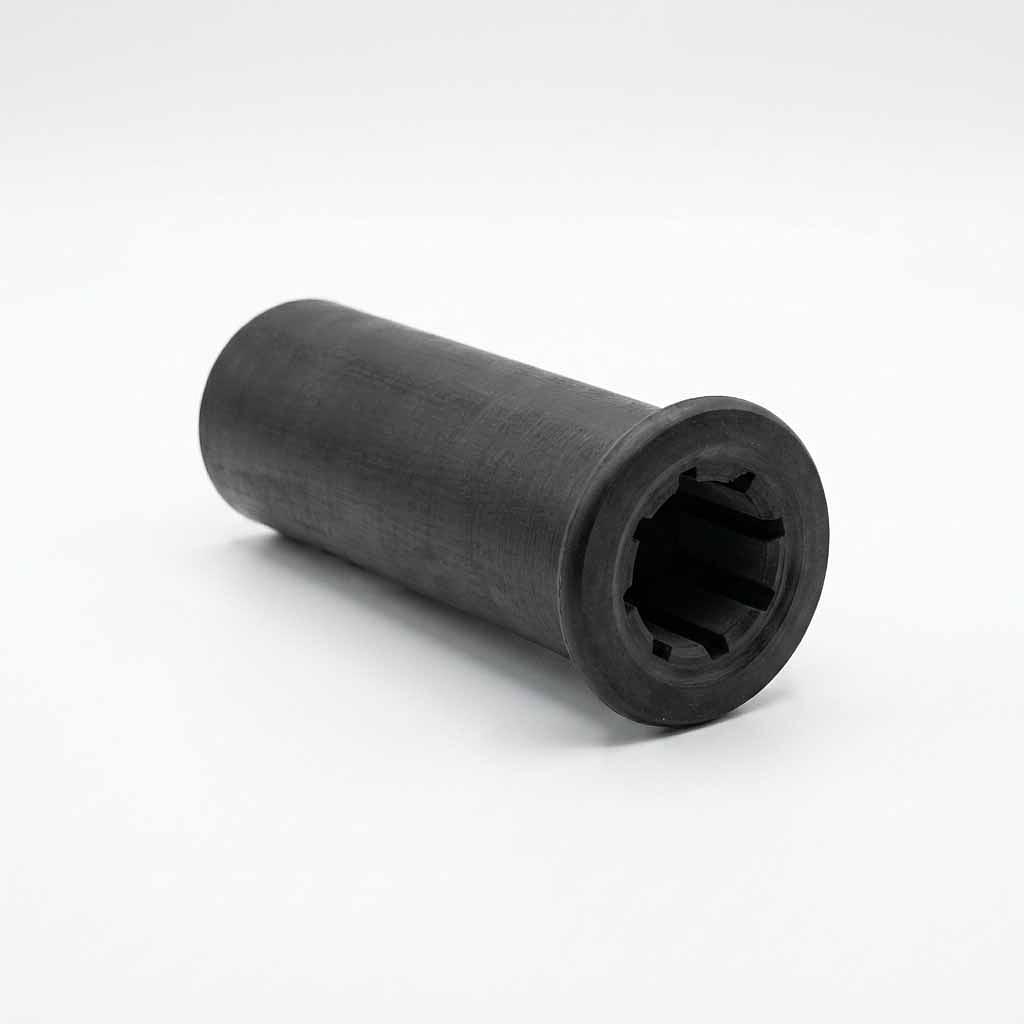

Rubber Cutlass Bearing - 22 mm x 36 mm x 75 mm - MRSFF22X36X75
Genuine Exalto water-lubricated rubber cutlass bearing for marine propeller shafts. Size: 22 x 36 x 75mm. Metric sizing.
Specifications
- Product code (SKU)
MRSFF22X36X75- Brand
- Exalto
- Manufactured in
- United Kingdom
- Material
- Rubber
- Unit system
- Metric
- Nominal size
- 22 x 36 x 75mm
- Inside diameter (I/D)
- 22 mm
- Outside diameter (O/D)
- 36 mm
- Length
- 75 mm
- I/D tolerance
- 22.08 – 22.18 mm
- O/D tolerance
- as moulded
About this bearing
The MRSFF22X36X75 is a genuine Exalto rubber cutlass bearing from the Standard Marine Range, manufactured in the United Kingdom to OEM tolerances. Nominal size is 22 x 36 x 75mm. It is designated for a 22 mm shaft and a nominal 36 mm housing bore. Confirm the specified housing fit and application before fitting. The tolerance ranges above describe the finished bearing dimensions. Overall length is 75 mm.
An all-rubber bearing without a rigid outer shell. This design uses its own mounting arrangement. Choose it when the vessel specification calls for an all-rubber bearing, and confirm the dimensions and retention method before fitting.
Refer to Exalto's shell and lining guidance and installation instructions. A bearing with matching nominal dimensions still needs a compatible material, clearance and mounting arrangement.
This bearing is out of stock and available to pre-order. The dispatch estimate is shown above. Shipping within Australia is free.
Need help sizing? See the measuring guide for step-by-step instructions, or contact us and we'll reply within one business day.
