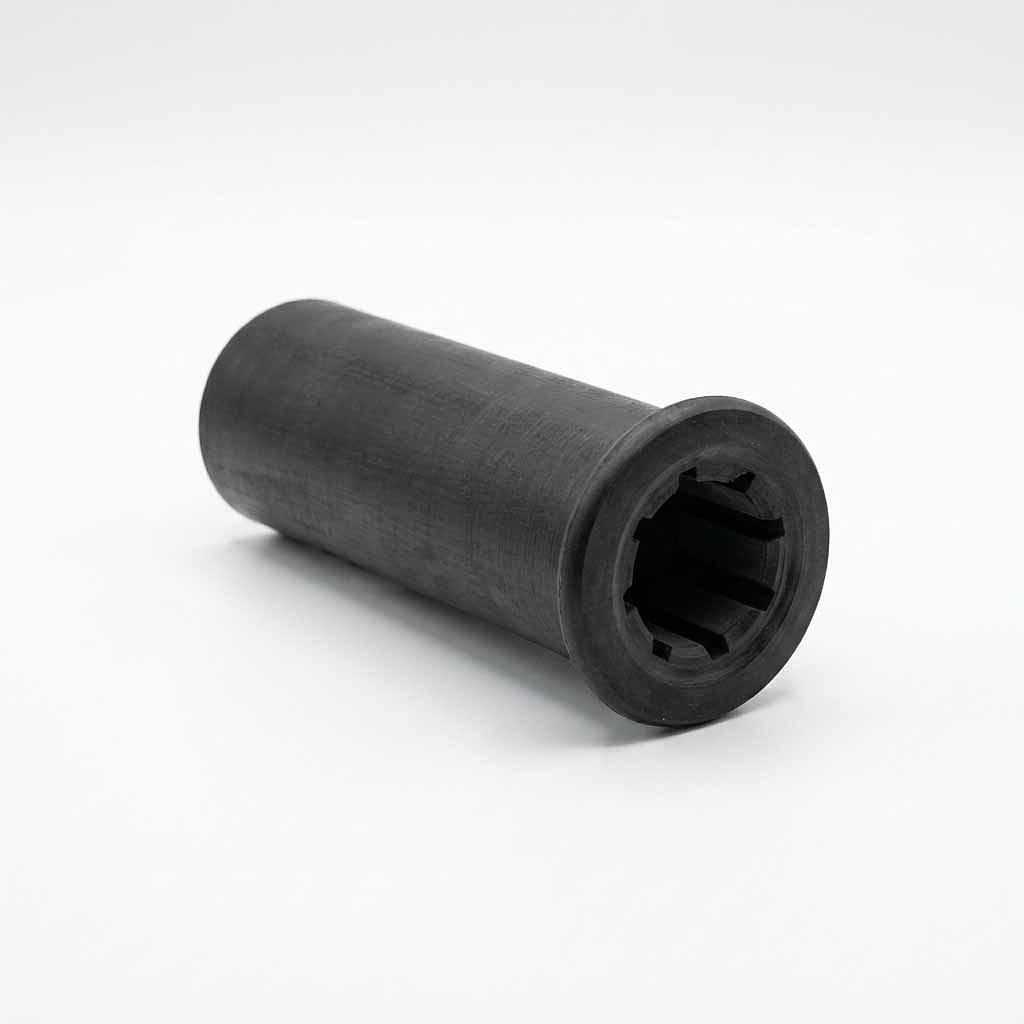

Rubber Cutlass Bearing - 22 mm x 29 mm x 75 mm - MRSFF22X29X75
Genuine Exalto water-lubricated rubber cutlass bearing for marine propeller shafts. Size: 22 x 29 x 75mm. Metric sizing.
Specifications
- Product code (SKU)
MRSFF22X29X75- Brand
- Exalto
- Manufactured in
- United Kingdom
- Material
- Rubber
- Unit system
- Metric
- Nominal size
- 22 x 29 x 75mm
- Inside diameter (I/D)
- 22 mm
- Outside diameter (O/D)
- 29 mm
- Length
- 75 mm
- I/D tolerance
- 22.08 – 22.18 mm
- O/D tolerance
- as moulded
About this bearing
The MRSFF22X29X75 is a genuine Exalto rubber cutlass bearing from the Standard Marine Range, manufactured in the United Kingdom to OEM tolerances. Nominal size is 22 x 29 x 75mm. It is designated for a 22 mm shaft and a nominal 29 mm housing bore. Confirm the specified housing fit and application before fitting. The tolerance ranges above describe the finished bearing dimensions. Overall length is 75 mm.
An all-rubber bearing without a rigid outer shell. This design uses its own mounting arrangement. Choose it when the vessel specification calls for an all-rubber bearing, and confirm the dimensions and retention method before fitting.
Refer to Exalto's shell and lining guidance and installation instructions. A bearing with matching nominal dimensions still needs a compatible material, clearance and mounting arrangement.
This bearing is in Australian stock. Check the availability shown above before ordering. Shipping within Australia is free.
Need help sizing? See the measuring guide for step-by-step instructions, or contact us and we'll reply within one business day.
