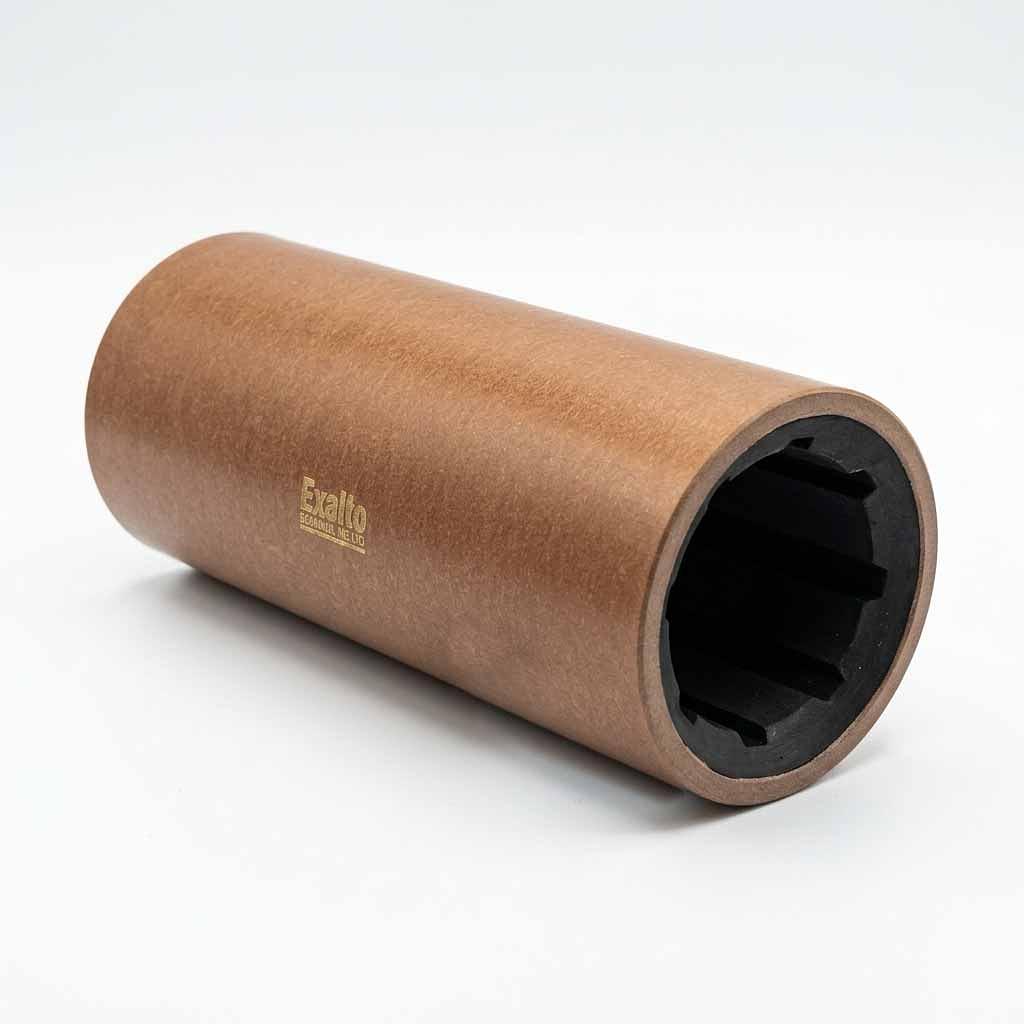

Phenolic Cutlass Bearing - 80 mm x 100 mm x 320 mm - MPSF80
Genuine Exalto water-lubricated phenolic cutlass bearing for marine propeller shafts. Size: 80 x 100 x 320mm. Metric sizing.
Specifications
- Product code (SKU)
MPSF80- Brand
- Exalto
- Manufactured in
- United Kingdom
- Material
- Phenolic
- Unit system
- Metric
- Nominal size
- 80 x 100 x 320mm
- Inside diameter (I/D)
- 80 mm
- Outside diameter (O/D)
- 100 mm
- Length
- 320 mm
- I/D tolerance
- 80.35 – 80.45 mm
- O/D tolerance
- 100.037 – 100.059 mm
About this bearing
The MPSF80 is a genuine Exalto phenolic cutlass bearing from the Standard Marine Range, manufactured in the United Kingdom to OEM tolerances. Nominal size is 80 x 100 x 320mm. It is designated for a 80 mm shaft and a nominal 100 mm housing bore. Confirm the specified housing fit and application before fitting. The tolerance ranges above describe the finished bearing dimensions. Overall length is 320 mm.
A phenolic outer shell with a grooved nitrile rubber lining. The non-metallic shell avoids galvanic corrosion between the bearing shell and a metal housing. Exalto allows for phenolic water absorption in its manufacturing tolerances.
Refer to Exalto's shell and lining guidance and installation instructions. A bearing with matching nominal dimensions still needs a compatible material, clearance and mounting arrangement.
This bearing is in Australian stock. Check the availability shown above before ordering. Shipping within Australia is free.
Need help sizing? See the measuring guide for step-by-step instructions, or contact us and we'll reply within one business day.
