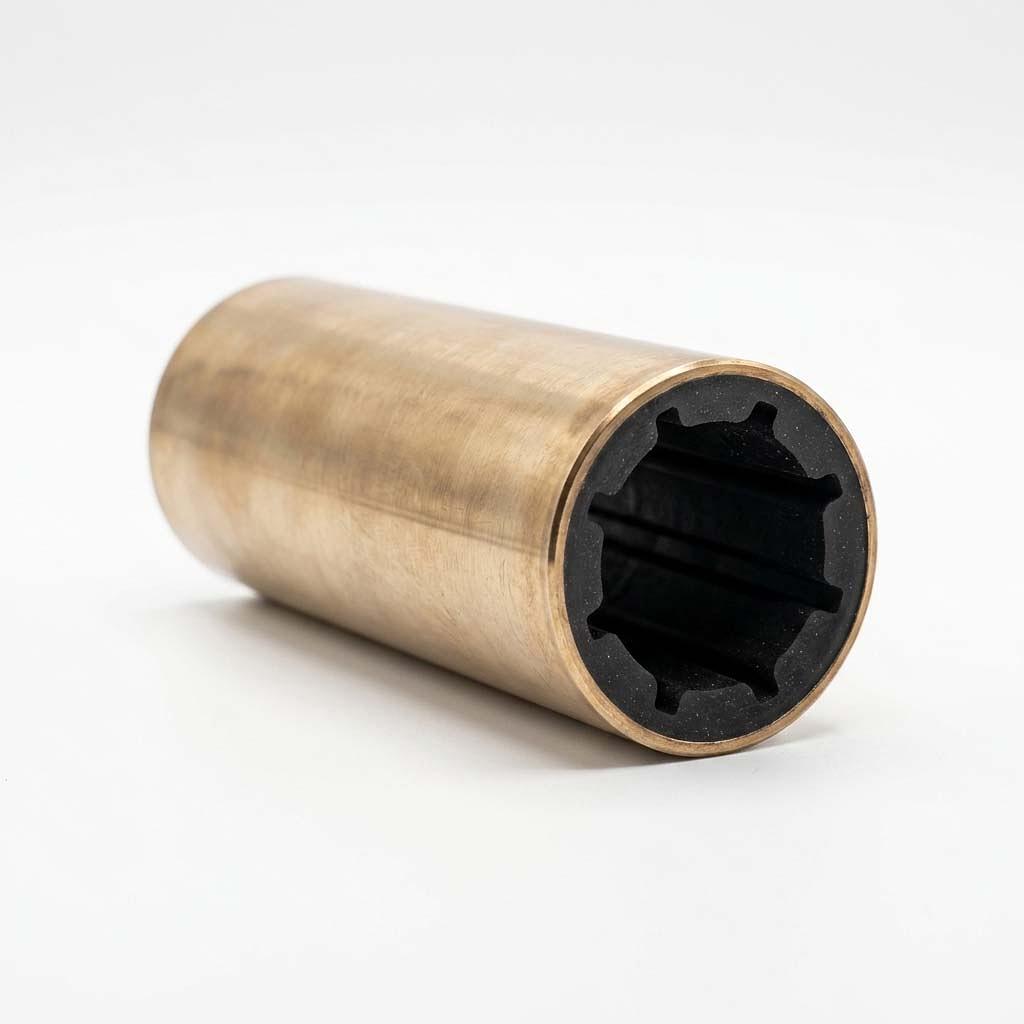

Brass Cutlass Bearing - 4" x 5" x 16" - IBSF32
Genuine Exalto water-lubricated brass cutlass bearing for marine propeller shafts. Size: 4" x 5" x 16". Imperial sizing.
Specifications
- Product code (SKU)
IBSF32- Brand
- Exalto
- Manufactured in
- United Kingdom
- Material
- Brass
- Unit system
- Imperial
- Nominal size
- 4" x 5" x 16"
- Inside diameter (I/D)
- 4"
- Outside diameter (O/D)
- 5"
- Length
- 16"
- I/D tolerance
- 4.004 – 4.008"
- O/D tolerance
- 5.0016 – 5.0026"
About this bearing
The IBSF32 is a genuine Exalto brass cutlass bearing from the Standard Marine Range, manufactured in the United Kingdom to OEM tolerances. Nominal size is 4" x 5" x 16". It is designated for a 4" shaft and a nominal 5" housing bore. Confirm the specified housing fit and application before fitting. The tolerance ranges above describe the finished bearing dimensions. Overall length is 16".
A brass outer shell with a grooved nitrile rubber lining. Exalto advises against fitting brass directly into steel or aluminium housings. A worn or oversized housing needs assessment; changing shell material does not correct its bore dimensions.
Refer to Exalto's shell and lining guidance and installation instructions. A bearing with matching nominal dimensions still needs a compatible material, clearance and mounting arrangement.
This bearing is out of stock and available to pre-order. The dispatch estimate is shown above. Shipping within Australia is free.
Need help sizing? See the measuring guide for step-by-step instructions, or contact us and we'll reply within one business day.
