Brass Cutlass Bearing - 20 mm x 1-1/4" x 80 mm - MIBSF20
Genuine Exalto water-lubricated brass cutlass bearing for marine propeller shafts. Size: 20mm x 1 1/4" x 80mm. Metric/Imperial sizing.
Specifications
- Product code (SKU)
MIBSF20- Brand
- Exalto
- Manufactured in
- United Kingdom
- Material
- Brass
- Unit system
- Metric/Imperial
- Nominal size
- 20mm x 1 1/4" x 80mm
- Inside diameter (I/D)
- 20 mm
- Outside diameter (O/D)
- 1-1/4"
- Length
- 80 mm
- I/D tolerance
- 20.08 – 20.18 mm
- O/D tolerance
- 1.2510 – 1.2516"
About this bearing
The MIBSF20 is a genuine Exalto brass cutlass bearing from the Standard Marine Range, manufactured in the United Kingdom to OEM tolerances. Nominal size is 20mm x 1 1/4" x 80mm. It is designated for a 20 mm shaft and a nominal 1-1/4" housing bore. Confirm the specified housing fit and application before fitting. The tolerance ranges above describe the finished bearing dimensions. Overall length is 80 mm.

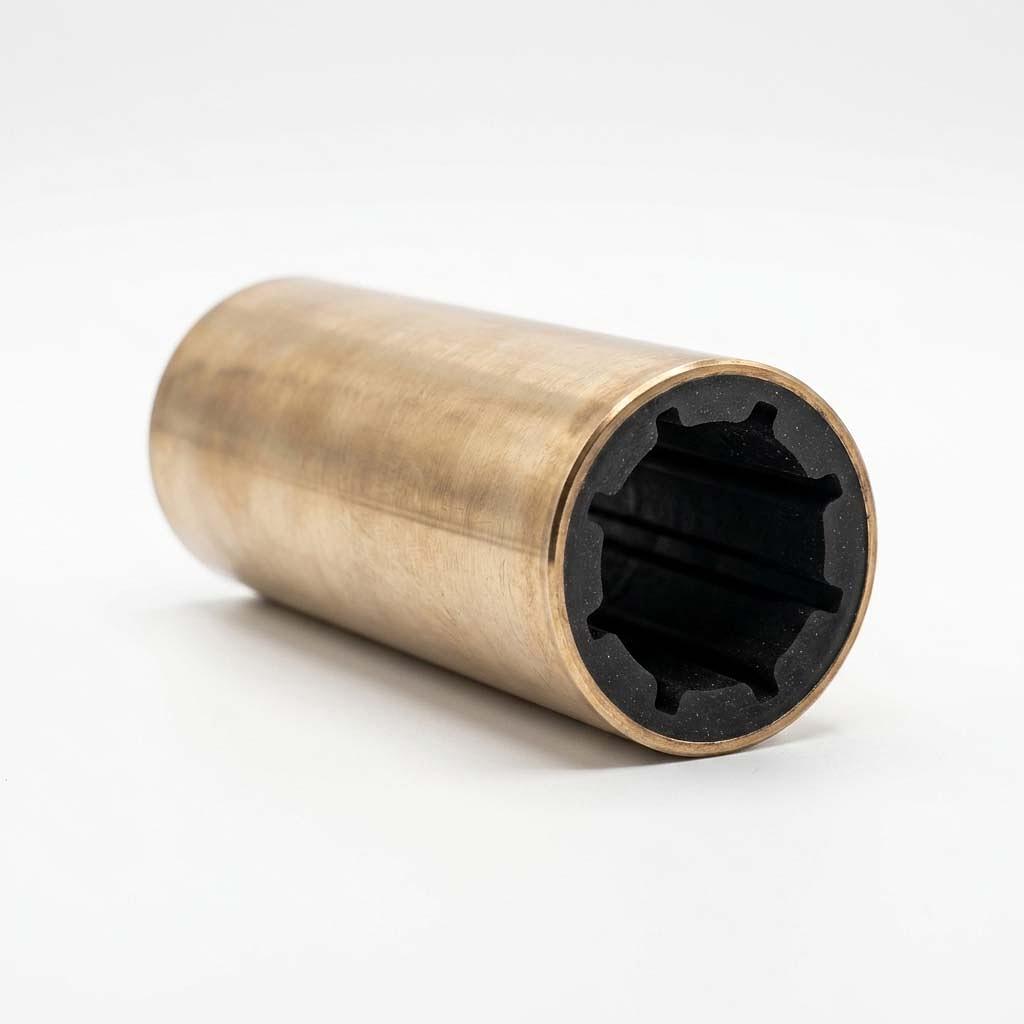

A brass outer shell with a grooved nitrile rubber lining. Exalto advises against fitting brass directly into steel or aluminium housings. A worn or oversized housing needs assessment; changing shell material does not correct its bore dimensions.
Refer to Exalto's shell and lining guidance and installation instructions. A bearing with matching nominal dimensions still needs a compatible material, clearance and mounting arrangement.
This bearing is out of stock and available to pre-order. The dispatch estimate is shown above. Shipping within Australia is free.
Need help sizing? See the measuring guide for step-by-step instructions, or contact us and we'll reply within one business day.
